Building a DC fast charger starts with a question that is easy to overlook: what charging job is the equipment actually expected to perform? A highway charging site, fleet depot, and commercial parking facility can require very different electrical architectures even if all three use DC charging.
We would therefore avoid selecting power modules first. The better sequence is to define the required output range, vehicle interface, installation environment, operating duty, and applicable standards, then design the charger around those requirements. IEC 61851-23:2023 specifies requirements for DC EV supply equipment and its energy-transfer functions.
Define What the Charger Must Deliver
Power rating is only the starting point. A Level 3 DC fast charger must deliver controlled DC energy directly to the vehicle, so the design has to account for output voltage and current ranges rather than a single advertised power figure.
Suppose a fleet operator wants rapid charging between vehicle shifts. The engineering target may be high utilization over repeated sessions rather than occasional peak output. That changes how we think about thermal capacity, power-module loading, cooling, maintenance access, and expected operating cycles.
A 150 kw DC fast charger illustrates the same principle. The 150 kW figure describes the charger’s rated output power, but it does not by itself define the complete electrical design. Input characteristics, output voltage range, current capability, cooling strategy, control architecture, and site infrastructure still have to be established.
Site conditions belong in this first step. Available grid capacity, ambient temperature, installation space, cable routing, and expected traffic all influence the eventual design. Treating these as afterthoughts can force expensive changes later.
Work Backward From the Vehicle
Once the charging requirement is clear, the design can work backward from the vehicle connection. The charger needs an appropriate DC output interface and a control system capable of managing the energy-transfer process.
IEC 61851-24:2023 specifically addresses digital communication between DC EV supply equipment and an electric vehicle for control of conductive DC power transfer. It applies alongside IEC 61851-23.
That makes vehicle communication part of the core engineering problem. The charger cannot simply produce DC voltage and leave the vehicle to manage everything else. Charging states, requested electrical conditions, fault responses, and session transitions need to be handled coherently.
Connector selection must also match the target market and vehicle population. A commercial charger intended for one regional vehicle ecosystem may have different interface requirements from equipment designed for another. We would settle that interface early because it affects both hardware and control software.
Turn Grid Power Into Controlled DC
The next challenge is the energy-conversion chain. Incoming electrical power must pass through the charger’s input and power-conversion stages before controlled DC reaches the vehicle.
For higher-power equipment, a modular power architecture can be useful because the total output can be built from multiple conversion modules rather than relying on one oversized conversion unit. The appropriate architecture depends on the desired power range, thermal design, service strategy, and physical constraints.
Power electronics also need to operate within their intended electrical and thermal limits. Increasing output power is not simply a matter of installing larger components. Switching losses, conduction losses, heat removal, electrical clearances, and component ratings all become part of the design calculation.
We would also consider how the charger behaves below maximum load. A unit that spends most of its operating life at partial power should not be evaluated solely on its peak rating. Control efficiency and thermal behavior across the expected operating range can have a direct effect on real-world performance.
Make the Charging Session Part of the Design
A functional charger needs software and control logic that connect the electrical system to the charging session. The controller monitors conditions, coordinates the power stage, manages communication, and responds when the expected sequence changes.
Imagine a vehicle arriving with a battery state that requires only moderate power at that moment. The charger should follow the negotiated charging conditions rather than continuously force maximum output. Later, if the vehicle requests a different operating point, the power-conversion system must respond accordingly.
The same principle applies to interruptions. A disconnected cable, communication failure, abnormal temperature, or electrical fault should produce a defined system response. IEC 61851-23:2023 includes requirements and test methods related to DC EV supply equipment, including communication and energy-transfer processes.
For us, this is where hardware and software stop being separate development projects. Their interfaces need to be designed and tested together.
Design the Hardware Around Heat and Faults
High-power charging produces heat, so thermal management needs to be designed alongside the electrical system. Power modules, switching components, cables, connectors, and other assemblies all contribute to the thermal picture.
The cooling method depends on the architecture and operating conditions. Air cooling may suit some equipment, while more demanding designs can require more advanced thermal management. IEC 61851-23:2023 explicitly includes requirements related to energy transfer with a thermal management system.
Protection must receive the same attention. Monitoring and shutdown functions should be coordinated with the power path so that abnormal conditions can move the equipment into an appropriate safe state.
Mechanical design matters too. An enclosure must accommodate power electronics, cooling equipment, cabling, control hardware, and service access without compromising the intended operating environment. A charger that is electrically sound but difficult to maintain is still a poor commercial design.
Prove the System Before It Reaches the Site
The final stage is not simply switching the charger on. System validation should demonstrate that the complete equipment behaves correctly across charging states and abnormal conditions.
We would test the interaction between power conversion, control software, vehicle communication, thermal management, protection functions, and the physical connector. Testing individual subsystems is useful, but it cannot fully replace integrated system testing.
A charger intended for commercial deployment should also be evaluated against the standards and certification requirements applicable to its target market. IEC 61851-23:2023 includes conformity test provisions, while IEC 61851-24:2023 covers the digital communication needed for DC charging control.

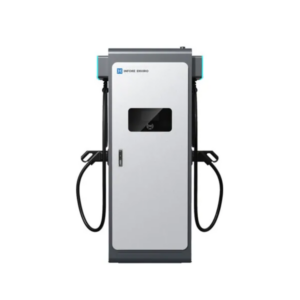

At INFORE ENVIRO, we develop DC chargers as complete systems, not independent components. Our range includes integrated and distributed DC solutions, with compact fast chargers alongside high-output systems in the upper power tiers.
Ultimately, learning how to build a Level 3 DC fast charger means understanding the relationship between the site, vehicle, power electronics, control system, thermal design, and protection architecture.
INFORE ENVIRO applies that systems perspective to commercial charging equipment, where reliable energy transfer matters just as much as the headline power rating.
For organizations evaluating or procuring charging equipment, the most reliable approach is to define the charging duty first, assess compatibility from the vehicle interface backward, and verify complete system performance before deployment. INFORE ENVIRO keeps that same principle at the center of its DC charging solutions.
