480kW Sailon Series Distributed DC Charger
Dedicated for best quality innovations
480kW Sailon Series Distributed DC Charger

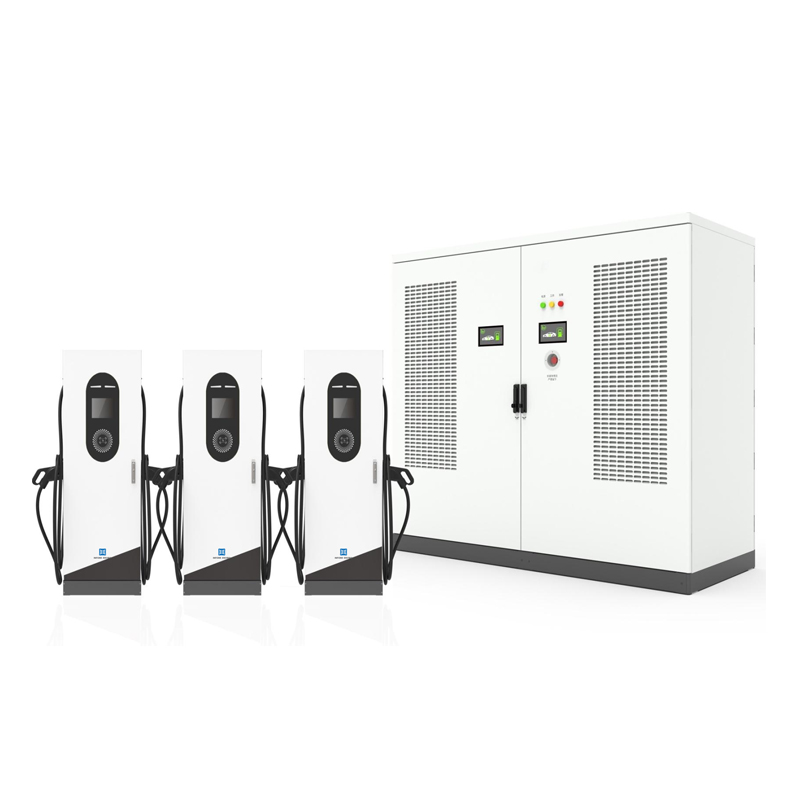

480kW Distributed DC Charger
Highlights :
- 480kW
- 200-1000VDC
- Liquid-cooled 600A, air-cooled 300A
- 7-inch touchscreen
- IP54
Description
| Features | ||||||
| This split floor-mounted charging stack features a sleek look, sturdy structure and comprehensive safety protections including emergency stop, overcurrent, overvoltage and insulation fault protection. Its independent terminals work without mutual interference and support liquid cooling. Ideal for bus stations, highway service areas, public parking lots and other high-power charging scenarios. It automatically adjusts output power according to vehicle load, with liquid-cooled terminals delivering up to 600A. This efficient DC charger complies with US and European standards for new energy vehicles. | ||||||
| Advantages | ||||||
| 1.Supports OCPP1.6J(WSS), upgradable to OCPP2.0J 2.200-1000V DC output, compatible with all high-voltage EVs 3.Optional 300kW standard / 600kW liquid-cooled terminals 4.Smart charging, remote diagnosis & OTA upgrade available 5.APP, POS and card activation supported 6.Stable full-load fast charging under high temperature 7.Environmental monitoring & charging logs ensure safety 8.Split structure, small size, low noise, good HMI 9.Matrix modules for high power efficiency 10.Meets EU, US and Japan charging standards | ||||||

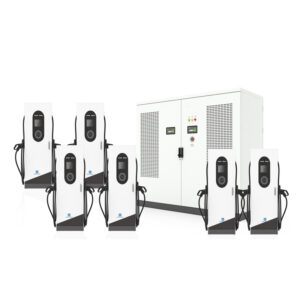

| 480kW/720kW/960kW Distributed DC Charger | ||||||
| Rated power | 480kW | |||||
| Number of main cabinets | 1 | |||||
| Number of terminal guns | 6-12 | |||||
| Input voltage | 380Vac(480Vac)±15% | |||||
| Rated frequency | 50Hz/60Hz | |||||
| Output voltage range | 200-1000VDC | |||||
| Maximun output current of a single gun | Liquid-cooled 600A, air-cooled 300A | |||||
| Output interface | American standard/European Standard | |||||
| Display screen | 7-inch touchscreen | |||||
| Operating temperature | -20~+50℃ | |||||
| Storage and transportation temperature | -40~+70℃ | |||||
| Relative humidity | ≤95% | |||||
| Protection level | IP54 | |||||
| Safety features | Short circuit protection, overvoltage protection, overcurrent protection, emergency stop protection. | |||||
Description
Specification
Packing
Description
| Features | ||||||
| This split floor-mounted charging stack features a sleek look, sturdy structure and comprehensive safety protections including emergency stop, overcurrent, overvoltage and insulation fault protection. Its independent terminals work without mutual interference and support liquid cooling. Ideal for bus stations, highway service areas, public parking lots and other high-power charging scenarios. It automatically adjusts output power according to vehicle load, with liquid-cooled terminals delivering up to 600A. This efficient DC charger complies with US and European standards for new energy vehicles. | ||||||
| Advantages | ||||||
| 1.Supports OCPP1.6J(WSS), upgradable to OCPP2.0J 2.200-1000V DC output, compatible with all high-voltage EVs 3.Optional 300kW standard / 600kW liquid-cooled terminals 4.Smart charging, remote diagnosis & OTA upgrade available 5.APP, POS and card activation supported 6.Stable full-load fast charging under high temperature 7.Environmental monitoring & charging logs ensure safety 8.Split structure, small size, low noise, good HMI 9.Matrix modules for high power efficiency 10.Meets EU, US and Japan charging standards | ||||||
| 480kW/720kW/960kW Distributed DC Charger | ||||||
| Rated power | 480kW | |||||
| Number of main cabinets | 1 | |||||
| Number of terminal guns | 6-12 | |||||
| Input voltage | 380Vac(480Vac)±15% | |||||
| Rated frequency | 50Hz/60Hz | |||||
| Output voltage range | 200-1000VDC | |||||
| Maximun output current of a single gun | Liquid-cooled 600A, air-cooled 300A | |||||
| Output interface | American standard/European Standard | |||||
| Display screen | 7-inch touchscreen | |||||
| Operating temperature | -20~+50℃ | |||||
| Storage and transportation temperature | -40~+70℃ | |||||
| Relative humidity | ≤95% | |||||
| Protection level | IP54 | |||||
| Safety features | Short circuit protection, overvoltage protection, overcurrent protection, emergency stop protection. | |||||
Specification
Packing
