Determining whether a residential electrical system can support high-capacity vehicle charging represents a critical first step for homeowners. Plugging in an electric vehicle draws substantial continuous power, requiring a careful assessment of household electrical service limits.
Ignoring service limits risks tripping main breakers, damaging household appliances, or violating national electrical safety codes. Evaluating panel capacity ensures safe energy delivery while avoiding unnecessary and expensive utility service overhauls.
Homeowners can determine system readiness by evaluating main panel amperage, calculating existing continuous electrical loads, and checking physical breaker space. Following a structured assessment workflow provides complete clarity on residential electrical capacity.
Evaluating Main Panel Amperage and Available Electrical Headroom
Assessing main electrical service panel capacity begins by locating the primary circuit breaker box and checking the main disconnect rating. Modern homes typically feature 100-amp, 150-amp, or 200-amp main service feeds supplied directly by local electrical utilities.
Homes equipped with 200-amp service panels usually possess sufficient electrical headroom to add dedicated high-amperage vehicle charging circuits easily. These larger service feeds comfortably accommodate simultaneous operation of central air conditioning, electric ranges, and water heaters alongside vehicle replenishment.
Properties operating on older 100-amp or 125-amp service panels require closer evaluation before connecting continuous high-amperage equipment. If heavy domestic appliances run concurrently on a 100-amp feed, available panel capacity diminishes rapidly during peak evening hours.
Our engineering specialists at INFORE ENVIRO recommend conducting a comprehensive site load assessment before selecting physical charging hardware. Identifying baseline energy consumption ensures that added electrical loads remain strictly within safe operational parameters.
Evaluating utility service drop cables and meter socket ratings provides additional verification of overall electrical headroom. Confirming that external supply lines match internal panel ratings prevents unexpected utility interconnection bottlenecks during equipment commissioning.
Calculating Continuous Electrical Loads and Circuit Breaker Margins
National Electrical Code standards classify electric vehicle charging as a continuous electrical load, requiring dedicated branch circuits to operate at no more than 80 percent of their rated breaker capacity. This mandatory safety buffer prevents continuous thermal buildup within panel busbars and breaker terminals.
Planning a Level 2 EV charger installation on a dedicated 40-amp circuit breaker allows continuous 32-amp power delivery, transferring up to 7.4 kW of single-phase energy safely. Sizing circuits according to the continuous load rule protects household wiring while ensuring rapid overnight vehicle replenishment.
Calculating existing household electrical demand involves summing the wattage of major non-pluggable appliances across all branch circuits. Subtracting peak concurrent appliance consumption from total main service capacity reveals the exact amperage remaining for vehicle charging.
If the calculated load does not support a typical 48A EVSE configuration on a 60A branch circuit, a lower-current EVSE such as a 32A model may be an alternative, subject to the vehicle, site, and electrical requirements. Operating at 32 amperes delivers ample daily range while avoiding expensive electrical service upgrades.
Conducting accurate load calculations protects residential subpanels from overheating during extended charging sessions. Proper circuit sizing guarantees reliable energy transfer without compromising domestic appliance performance or electrical safety standards.
Physical Panel Requirements and Wiring Pathways
Beyond electrical amperage capacity, physical space within the main breaker panel represents a crucial requirement for adding new dedicated circuits. A typical 240V Level 2 installation in a U.S. residential panel uses a two-pole breaker, with the exact breaker type and panel position determined by the panel manufacturer and installation requirements.
Subpanels filled with single-pole breakers may lack physical space for new double-pole hardware, even if overall electrical amperage headroom exists. If the existing panel lacks space, an electrician can determine whether a listed tandem breaker, a subpanel, or a panel upgrade is permitted for that specific equipment and installation
Selecting appropriate wire gauges between the breaker panel and wallbox location ensures minimal voltage drop across extended conductor runs. Utilizing 8-gauge or 6-gauge copper conductors inside rigid conduits maintains optimal conductivity and prevents thermal stress along branch lines.

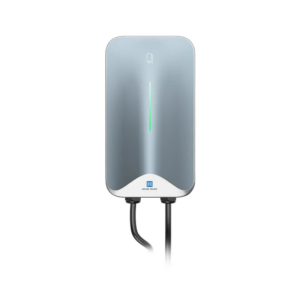

At INFORE ENVIRO, we design residential wallboxes featuring compact backplanes and versatile conduit entry points to simplify physical mounting. Standardized mounting templates reduce installation complexity across diverse garage and outdoor driveway configurations.
Inspecting ground busbars and neutral bonding jumpers guarantees solid electrical grounding before energizing high-power wallboxes. Proper physical grounding protects sensitive station electronics and prevents dangerous voltage fluctuations during active charging sessions.
Smart Solutions for Capacity-Constrained Residential Electrical Panels
Homeowners with 100-amp panels who lack headroom for traditional additions do not necessarily need expensive main utility service upgrades. Installing an EV Level 2 charger equipped with dynamic load management allows safe operation on capacity-constrained electrical panels.
Dynamic load management systems utilize external current transformer clamps to monitor total household electrical consumption continuously in real time. When household appliances activate, intelligent wallboxes automatically throttle charging current to prevent main breaker overloads.
Our smart energy solutions engineered at INFORE ENVIRO adjust power output dynamically in response to site conditions. Automated current regulation maximizes charging speeds during low-demand nighttime hours while shielding main service panels during peak household activity.
Integrating smart load management accessories expands charging accessibility for older homes without forcing multi-thousand-dollar panel overhauls. Property owners achieve rapid overnight charging while maintaining complete electrical system integrity.
Consulting with a licensed electrician ensures that any Level 2 EV charger installation complies fully with local building codes and utility requirements. Following professional evaluation protocols guarantees safe, efficient, and dependable home charging performance for years ahead.
Determining if your house can handle a high-voltage wallbox comes down to evaluating main panel capacity, continuous loads, and physical space. Embracing intelligent load management technologies allows even capacity-constrained homes to support an EV Level 2 charger safely. Proper planning guarantees effortless daily refueling, protects electrical infrastructure, and delivers peace of mind for EV owners.
