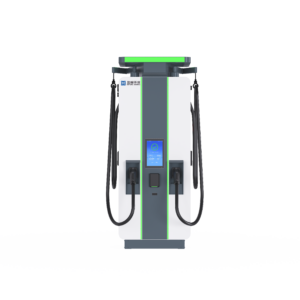

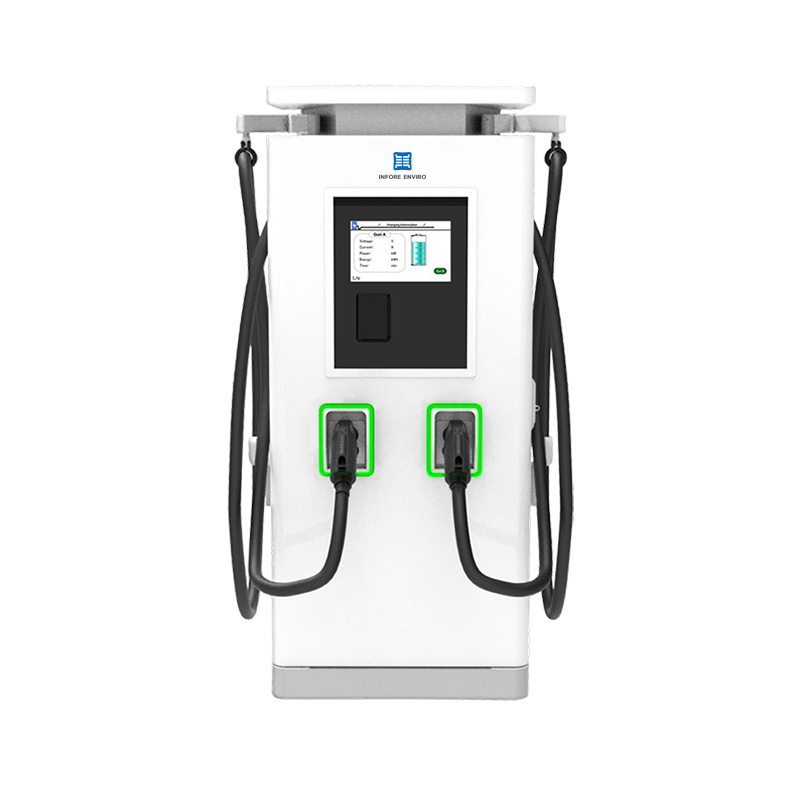

2 Guns DC EV Charging Pile 240kW-480kW

Dedicated for best quality innovations

2 Guns DC EV Charging Pile 240kW-480kW

2 Guns DC 240kW-480kW EV Charging Station Fast Charging



Highlights :

  • 240-480kW
  • 2 Guns CCS2
  • Floor-standing
  • 1″ LCD touch screen
  • 6J
  • IP54

Description

Features
1.Multiple installation methods: vertical and wall-mounted installationmethods are available
2.A variety of charging control technologies: support appointmentcharging, smart charging planning, support DLB home load balancing,etc.
3.High safety: it has overload protection, lightning protection, short circuitprotection, leakage protection and emergency shutdown functions toensure the safety of the charging process.
4.Adapt to a wide range of scenarios: suitable for private homes,commercial office buildings, urban complexes and other parking lots orpublic charging stations and other charging places.
5.Convenient operation and maintenance: support remote upgrade andremote diagnosis to facilitate operation and maintenance
6.Fast charging speed: DC charging piles can provide faster chargingspeeds than AC charging piles.Usually, it can complete the vehide in ashorter period of time
7.Intelligent management: Equipped with an advanced intelligentmanagement system, users can monitor the charging status in real time,set the charging time, and even remotely control it through the mobilephone app.
8.Strong compatibility: supports charging of 99% of models on themarket
240-480kw DC EV Charger
power240-480kw
Number of rechargeable gunsDouble gun
Gun line length5m
Display method10.1″ LCD touch screen
Cooling methodAir-cooled(Special noise reduction charging pile, low noise level)
Startup methodAPP/RFID Card/POS(optional)
Networking method4G/ WIFI /Bluetooth /Ethernet
Network platformWS/WSS OCPP1.6J(ocpp2.0 optional)
Input voltageAC400V±10%
Output voltage200-1000V
Output current0-300A0-350A
Input frequency45Hz-65Hz
Protection functionShort circuit, overload, over temperature, leakage, overvoltage, etc.
Protection levelIP54
Operating temperature-20℃~+50℃
Storage temperature-40℃~+70℃
Relative humidity5℃~+95℃
Altitude≤2000m
Product Dimension800*670*1900mm860*870*1869mm
Package Dimension950*1135*2080mm950*1135*2080mm
Net Weight440kg560kg
Gross Weight(External Package Carton490kg620kg
Installation methodFloor-standing
