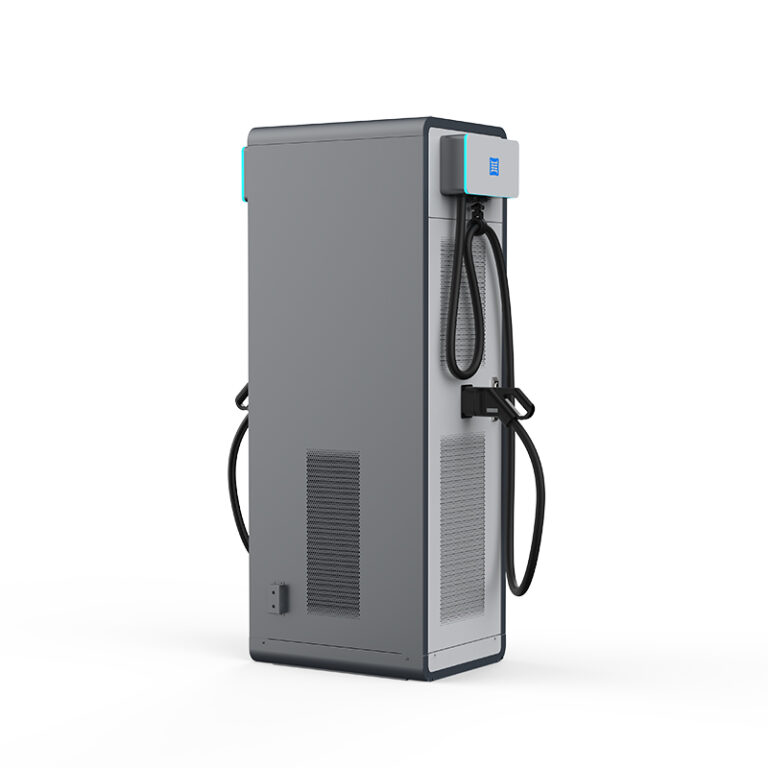

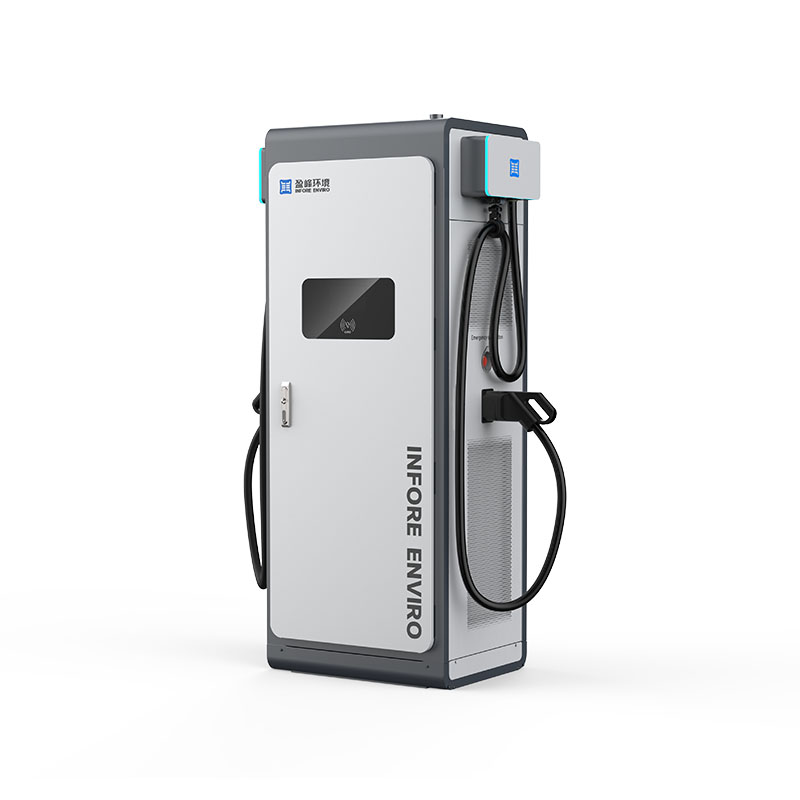

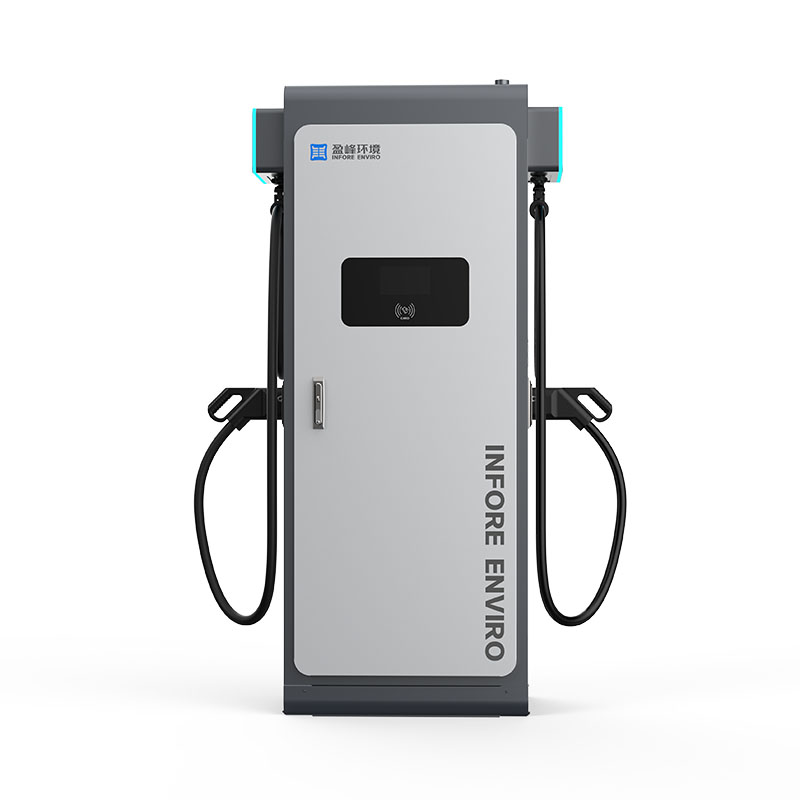

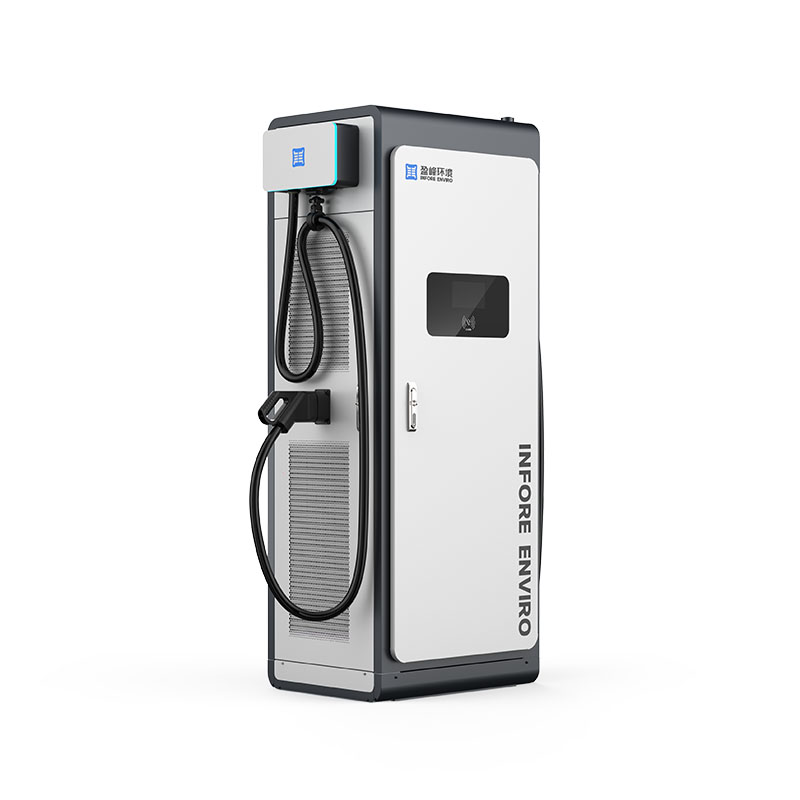

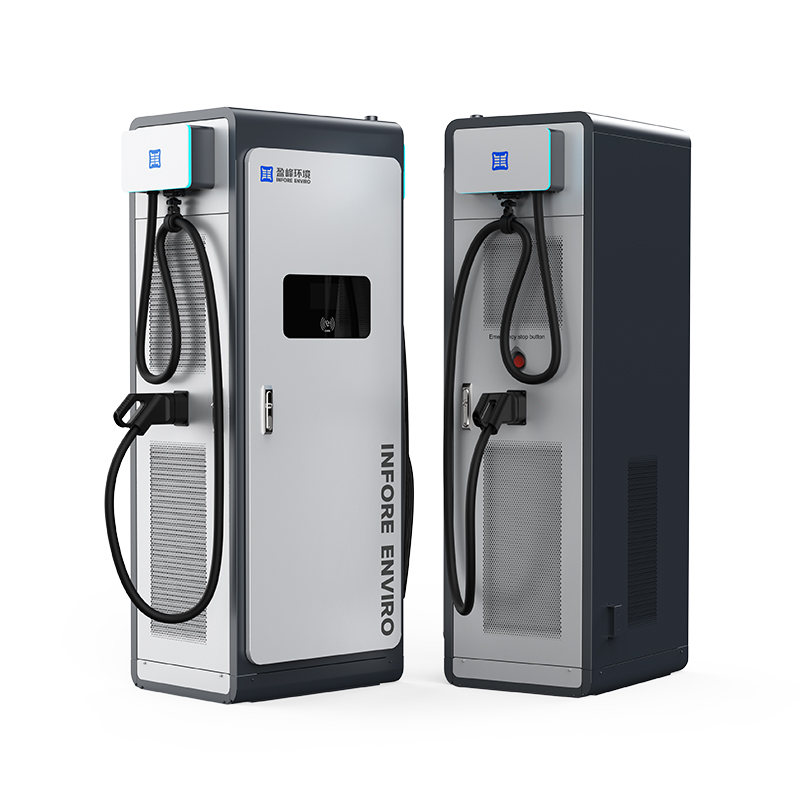

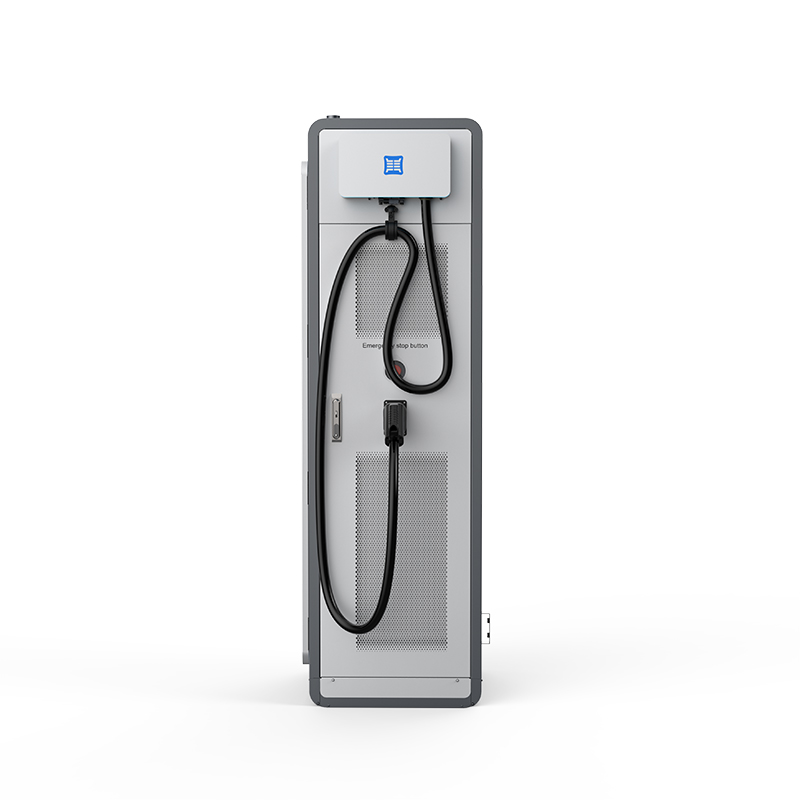

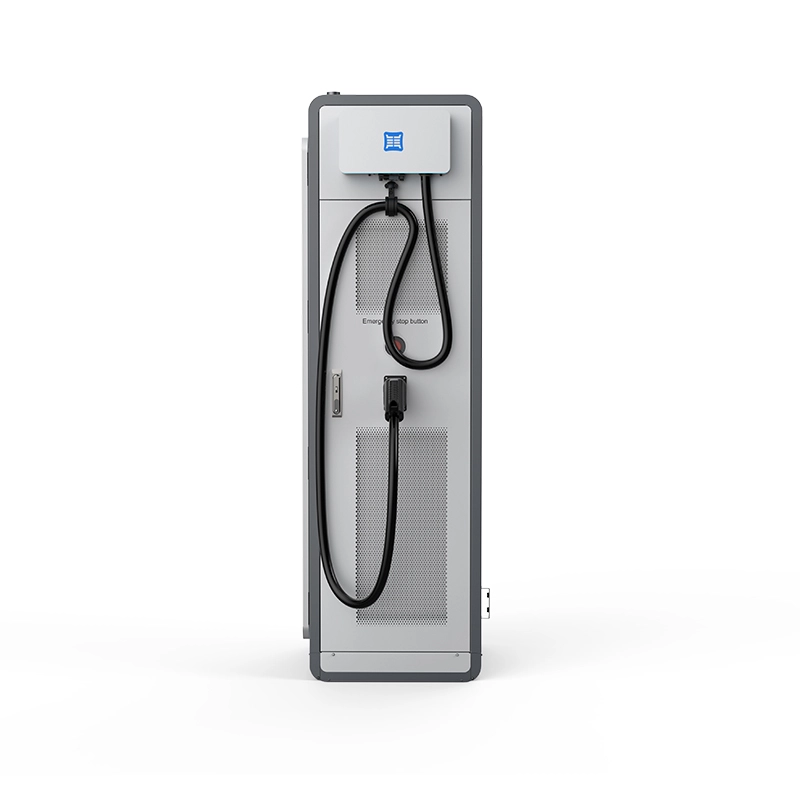

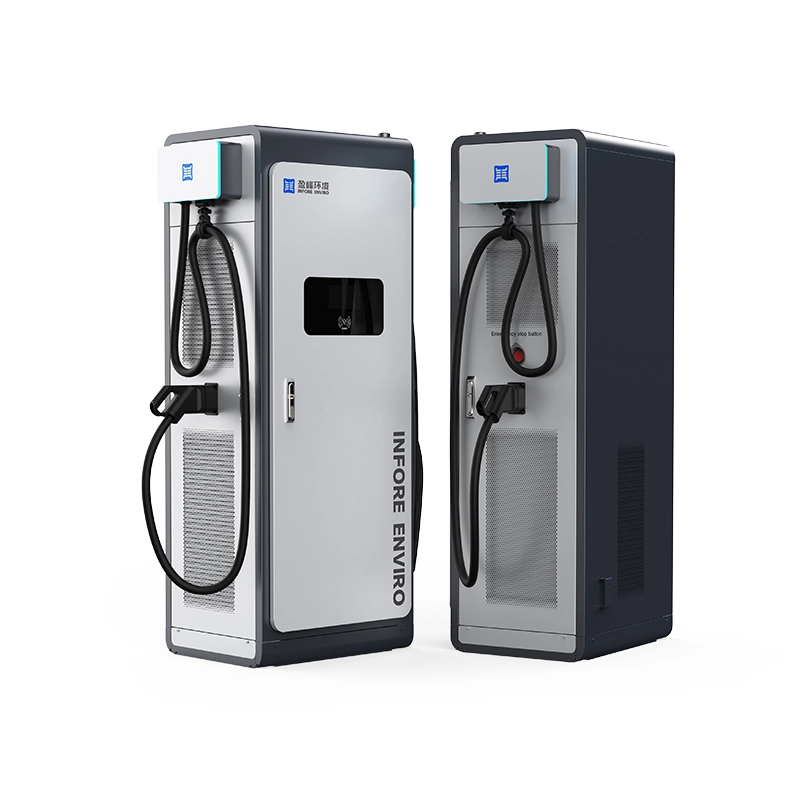

60kW-180kW Flash Series DC Fast Charger
Dedicated for best quality innovations
60kW-180kW Flash Series DC Fast Charger

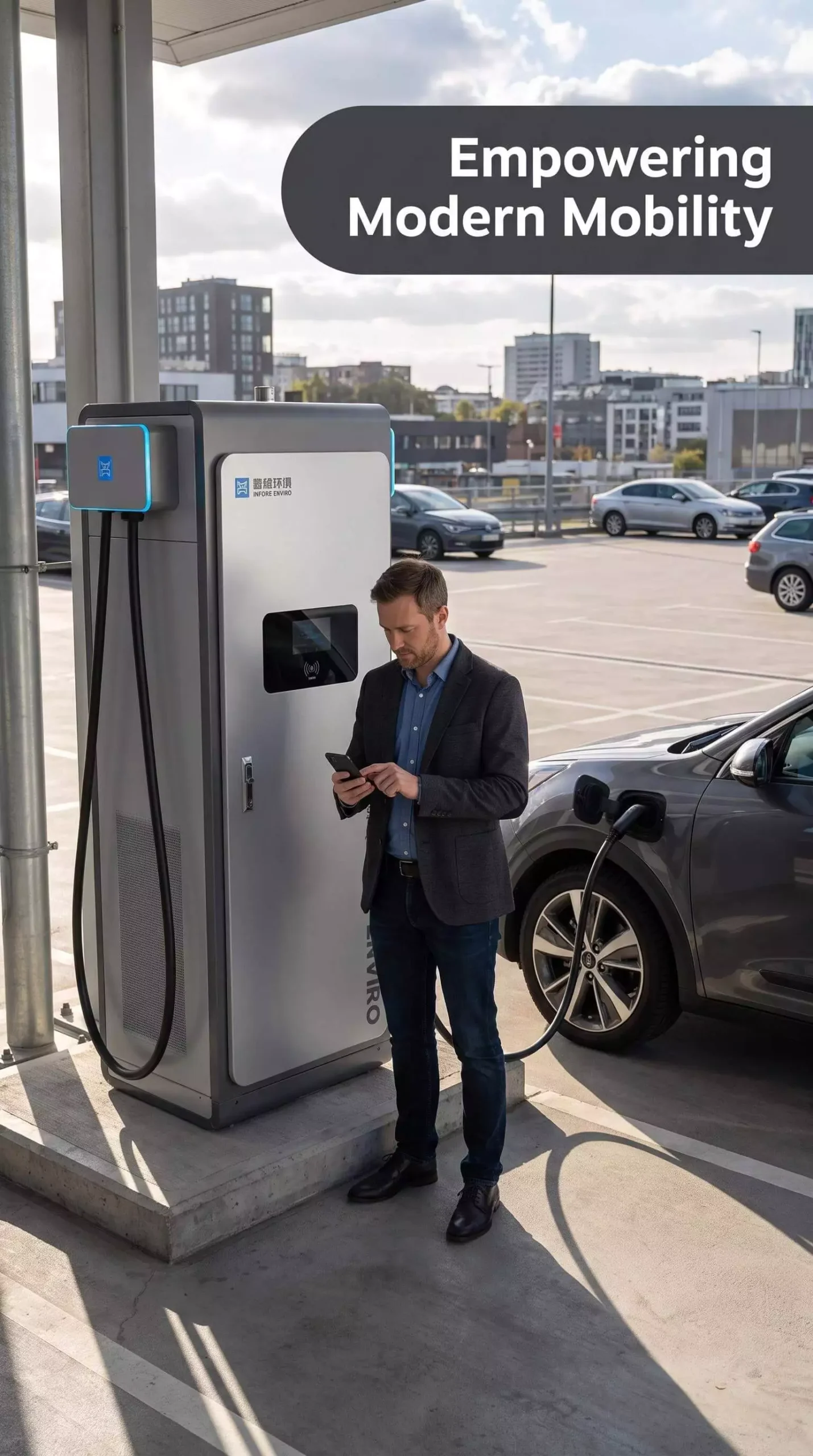

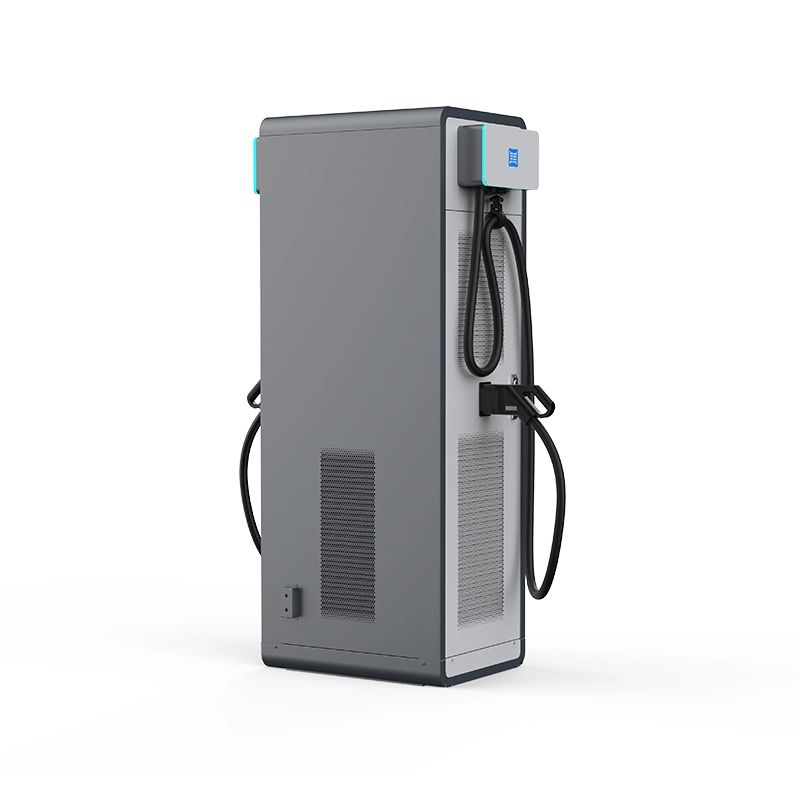

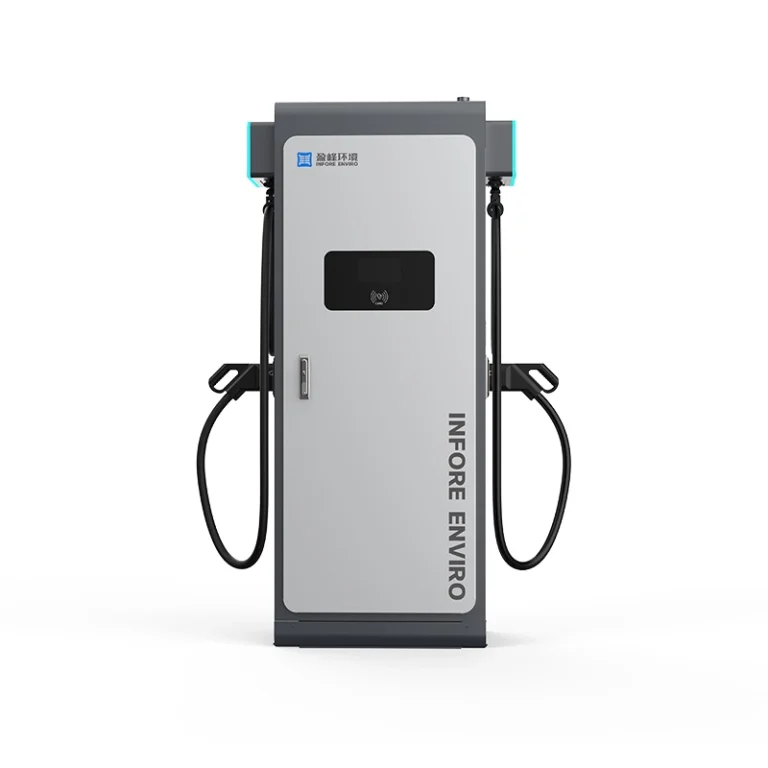

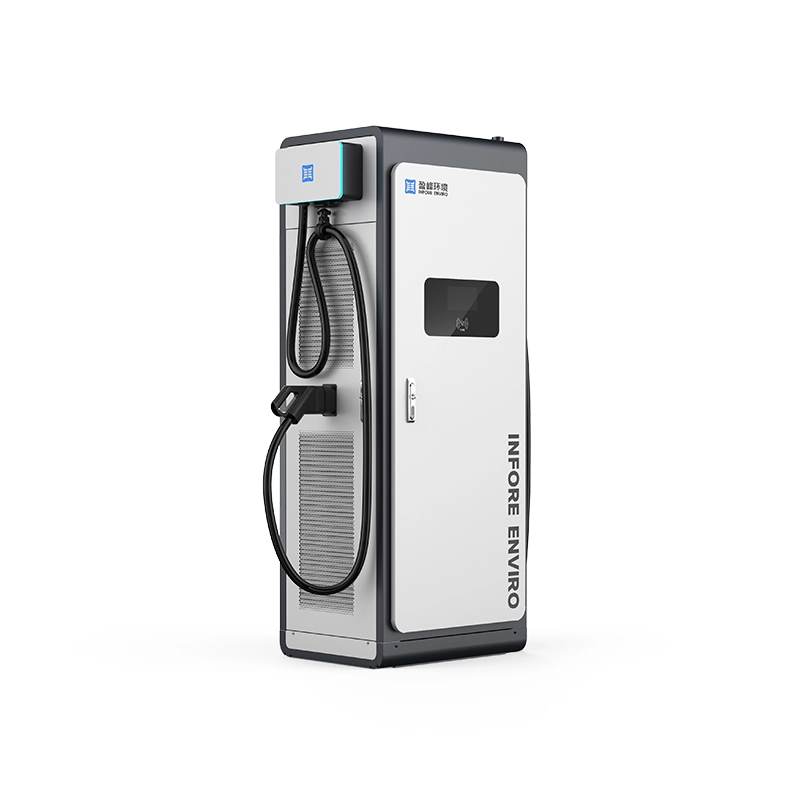

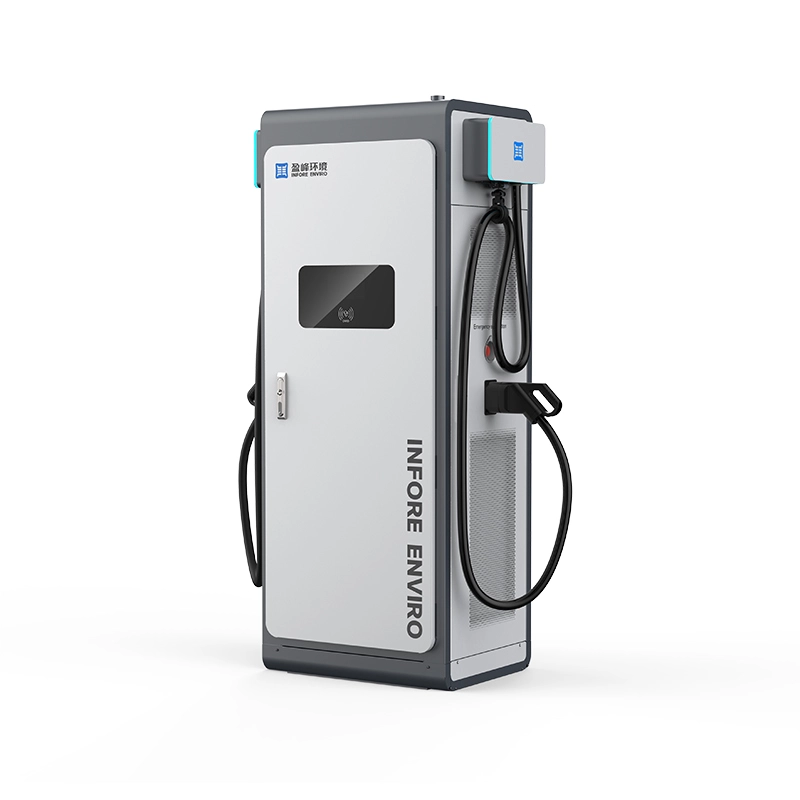

This CCS DC fast charger is a pedestal EV charging solution for public and commercial use, ideal for fleet depots, logistics hubs, and airport charging, supporting high-traffic fast charging with dual-gun operation under EU EV charger standard requirements.
Highlights :
- 160kW
- 2Guns CCS2
- Floor-stand
- 7-inch LCD screen
- OCPP 1.6J
- IP54
- CE、RoHS
Description
| DC Fast Charger（CCS2） | |
| This pedestal EV charger is a 160 kW dual gun DC fast charger / CCS2 fast charger, featuring IP54 protection, OCPP 1.6J smart control, and multiple safety protections for stable commercial operation, backed by a 2-year warranty and 7×24-hour after-sales response. | |
| Basic parameter | |
| Model | YTD-E-160 |
| Rated power | 160kW |
| Communication | |
| Input voltage | AC400V±15% |
| Input current | ≤258A |
| Input frequency | 50/60Hz |
| Output Parameter | |
| Output voltage | DC200-1000V |
| Constant power output voltage | DC300-1000V |
| Max output current | 200A |
| 250A | |
| Safety | |
| Peak efficiency | ≥95% |
| Power factor | ≥99% |
| Communication protocol | OCPP1.6J |
| Interactive | LED indicator、7-inch display |
| Networking | 4G/Ethernet |
| Startup mode | APP、RFID |
| Charging port | （CCS2） Two |
| Cable length | 5m |
| Ingress protection | Ingress protection |
| Cable booster | Yes |
| Protection | Charging connector temperature、detection、Undervoltage protection、 0vervoltage protection、DC 0vercurrent protection、Over-temperatureprotection 、SurgeProtection Device、Emergency Stop Prot ection |
| Installation mode | Floor type |
| Cooling mode | Intelligent air cooling speed regulation |
| Operating temperature | -25℃～+50℃ |
| Storage temperature | -40℃～+70℃ |
| Relative humidity | 5%～95% ,non-condensation |
| Altitude | ≤2000m |
| Dimension（W*D*H） | 750mm*600mm*1950mm |
| Ingress protection | IP54 |
