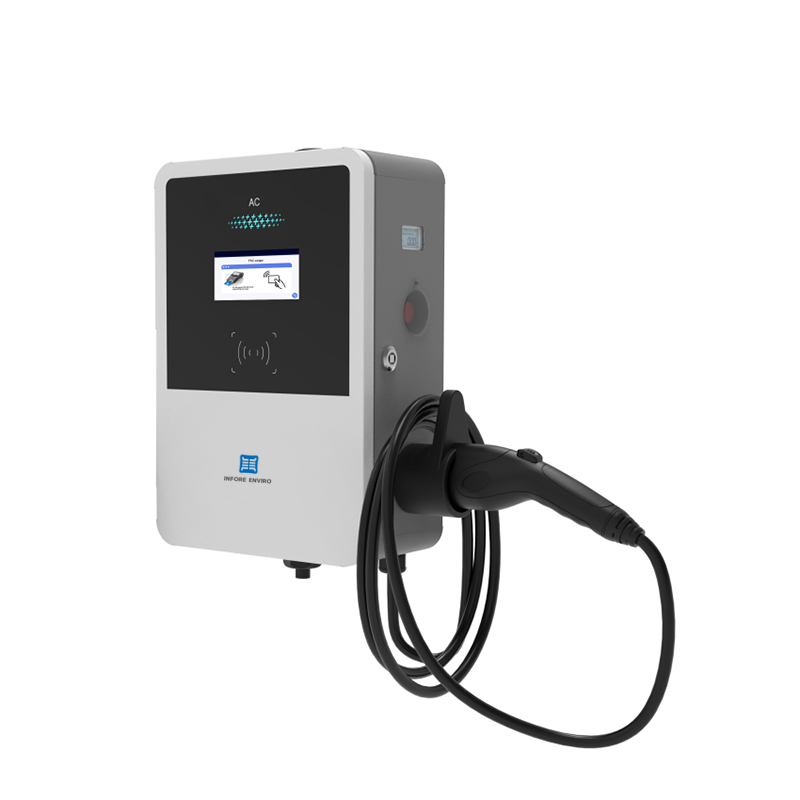

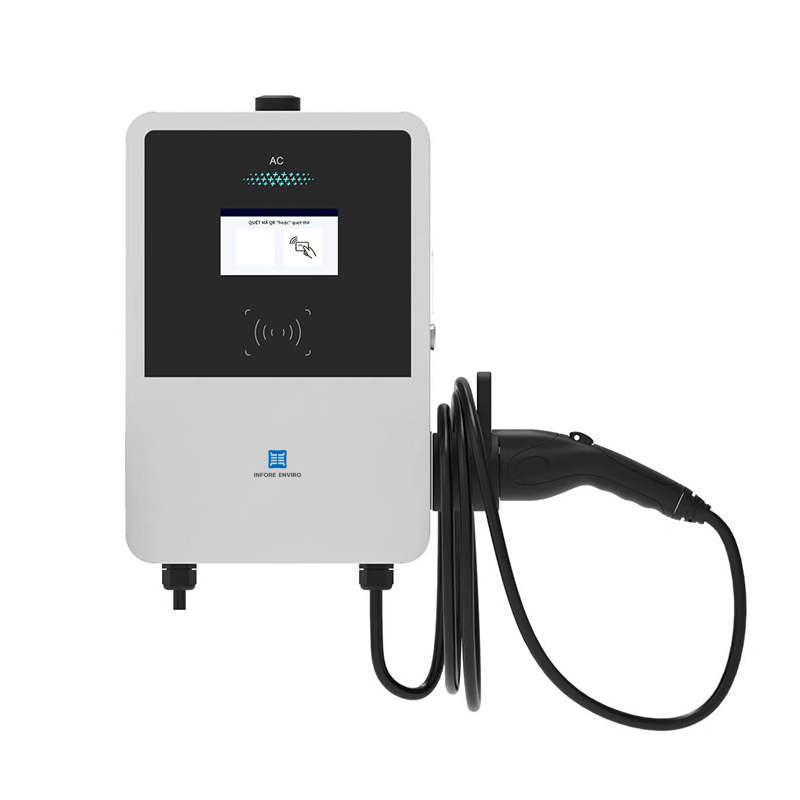

43kW AC EV Charger Type2 With Single gun
Dedicated for best quality innovations
43kW AC EV Charger Type2 With Single gun
Commercial OCPP1.6J 43kW AC EV Charger Type2 With Single gun
Highlights :
- power:43kW
- Startup method :APP/RFID Card
- Networking method:4G WIFI Bluetooth Ethernet
- Input voltage:AC380V±10%
- Smart Version with APP (optional)
Description
| Features | ||||||
| ||||||
| 43kW AC EV Charger | ||||||
| power | 43kW | |||||
| Number of rechargeable guns | Single gun | |||||
| Gun line length | 5m | |||||
| Display method | 5″ LCD touch screen | |||||
| Cooling method | Air-cooled | |||||
| Startup method | APP/RFID Card | |||||
| Networking method | 4G WIFI Bluetooth Ethernet | |||||
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） | |||||
| Input voltage | AC380V±10% | |||||
| Output current | 0-63A | |||||
| Input frequency | 48Hz-65Hz | |||||
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. | |||||
| Extended function | DLB, PEN, AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development) | |||||
| Extended functionality | PEN (No grounding required) | |||||
| Home load balancing (DLM/DLB) | ||||||
| Solar (Supports solar grid connection) | ||||||
| AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development)) | ||||||
| Supports 485 Modbus/Modbus TCP data monitoring, supports EMS protocol interface | ||||||
| Protection level | IP54 | |||||
| IK08 | ||||||
| Operating temperature | -20℃～+50℃ | |||||
| Storage temperature | -40℃～+70℃ | |||||
| Relative humidity | 5℃～+95℃ | |||||
| Altitude | ≤2000m | |||||
| Product Dimension | 460*180*310mm | |||||
| Package Dimension | 625*484*380mm | |||||
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | |||||
Description
Specification
Packing
Description
| Features | ||||||
| ||||||
| 43kW AC EV Charger | ||||||
| power | 43kW | |||||
| Number of rechargeable guns | Single gun | |||||
| Gun line length | 5m | |||||
| Display method | 5″ LCD touch screen | |||||
| Cooling method | Air-cooled | |||||
| Startup method | APP/RFID Card | |||||
| Networking method | 4G WIFI Bluetooth Ethernet | |||||
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） | |||||
| Input voltage | AC380V±10% | |||||
| Output current | 0-63A | |||||
| Input frequency | 48Hz-65Hz | |||||
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. | |||||
| Extended function | DLB, PEN, AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development) | |||||
| Extended functionality | PEN (No grounding required) | |||||
| Home load balancing (DLM/DLB) | ||||||
| Solar (Supports solar grid connection) | ||||||
| AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development)) | ||||||
| Supports 485 Modbus/Modbus TCP data monitoring, supports EMS protocol interface | ||||||
| Protection level | IP54 | |||||
| IK08 | ||||||
| Operating temperature | -20℃～+50℃ | |||||
| Storage temperature | -40℃～+70℃ | |||||
| Relative humidity | 5℃～+95℃ | |||||
| Altitude | ≤2000m | |||||
| Product Dimension | 460*180*310mm | |||||
| Package Dimension | 625*484*380mm | |||||
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | |||||
Specification
Packing
