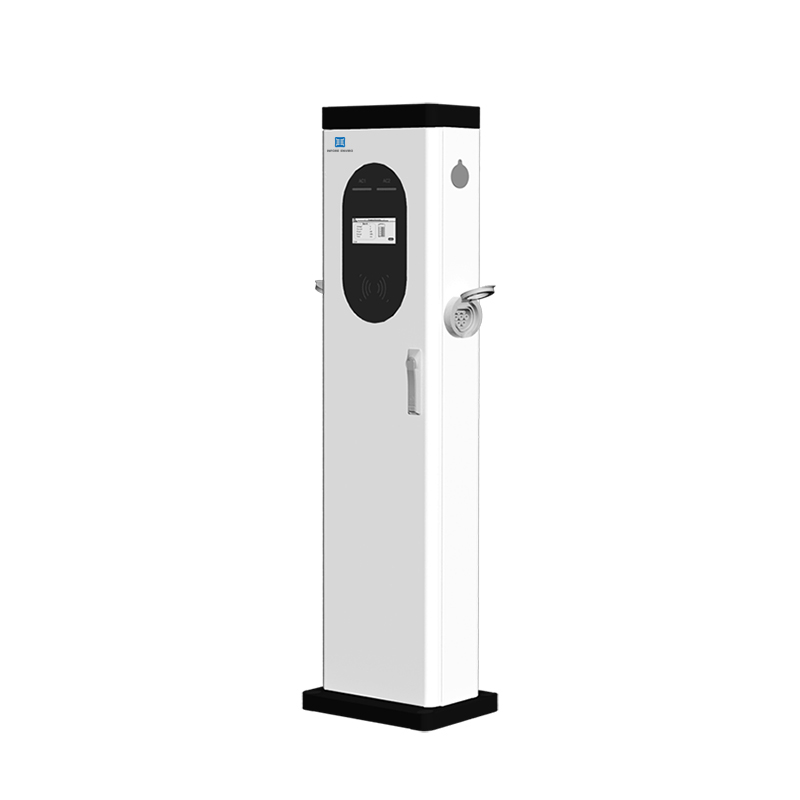

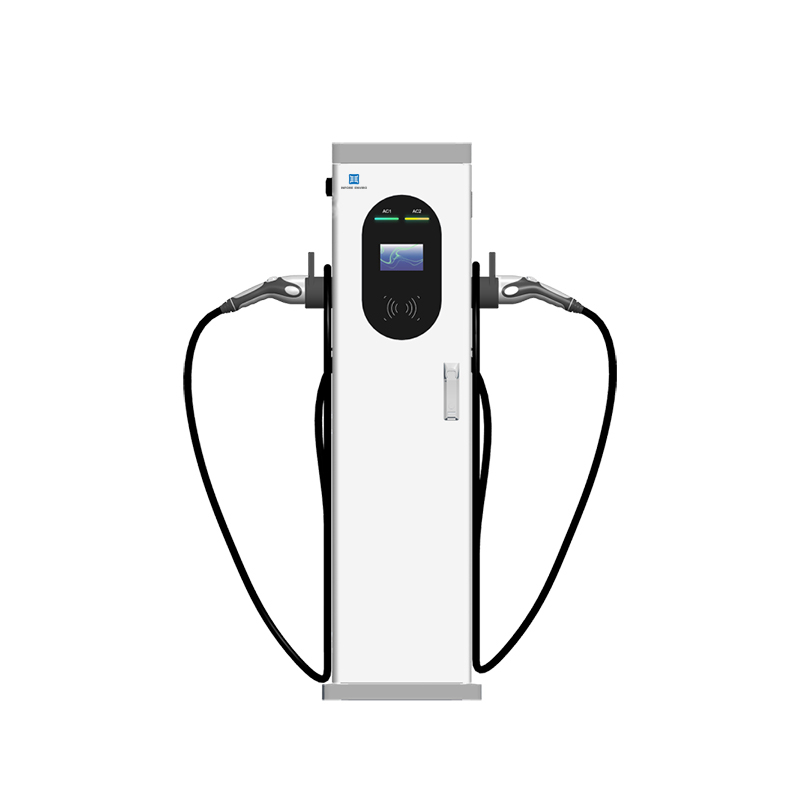

14-42kW AC EV Charger 2 Guns Type 2
Dedicated for best quality innovations
14-42kW AC EV Charger 2 Guns Type 2
14-42kW AC EV Charger 2 Guns Type 2
Highlights :
- 14-42kW
- 2 Guns Type2
- APP/RFID Card
- 4G/WIFI/Bluetooth/Ethernet
- IP54
Description
| Features | ||||||
| • 1. 5-inch touch screen, dual 7kW & dual 22kW output • Excellent human-machine interaction (HMI) system, displaying real-time voltage, current, power, etc. • 2. Support OCPP dual-platform connection • 3. Support intelligent charging schedule • 4. Remote upgrade & remote diagnosis • 5. Powerful expansion functions supporting home load balancing and PV (photovoltaic) integration • 6. Support Modbus RTU and Modbus TCP for connection to government monitoring equipment • 7. Ultra-strong protection: over-voltage protection, under-voltage protection, short-circuit protection, overload protection, earth fault protection, over-temperature protection • 8. High protection grade: IP54 • 9. Plug-out version & socket-out version | ||||||
| 14-42kw AC EV Charger | ||||||
| power | 14kw/42kw | |||||
| Number of rechargeable guns | Double gun | |||||
| Gun line length | 5m | |||||
| Display method | 5″ LCD touch screen | |||||
| Startup method | APP/RFID Card | |||||
| Networking method | 4G WIFI Bluetooth Ethernet | |||||
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） | |||||
| Input voltage | AC220V±20% | |||||
| Output current | 32A/63A | |||||
| Input frequency | 48Hz-65Hz | |||||
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. | |||||
| Extended function | DLB, PEN, AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development) | |||||
| Protection level | IP54 | |||||

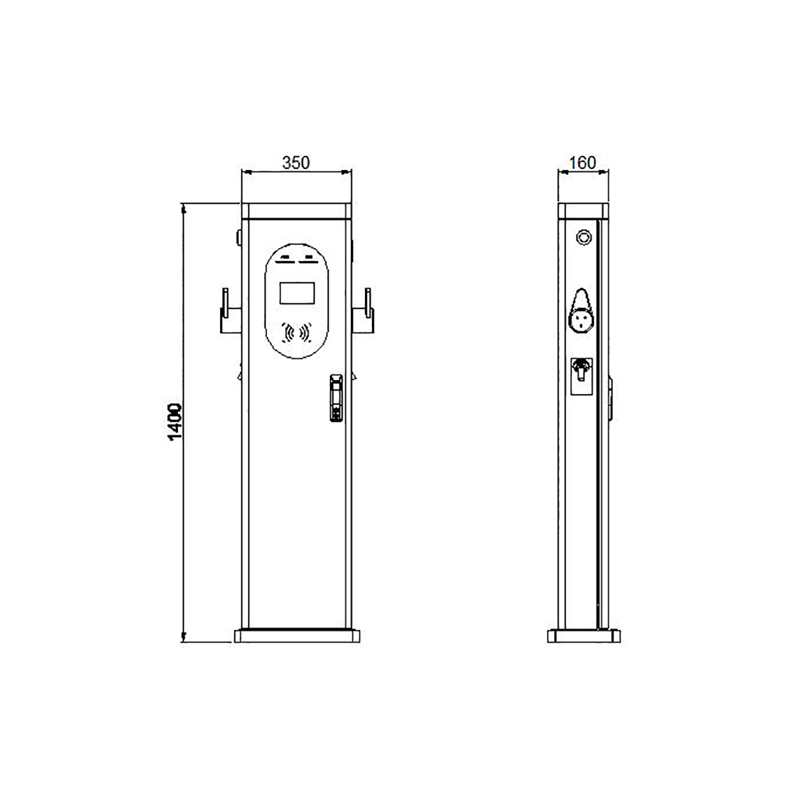

| Product Dimension | 1400mm*350mm*160mm | |||||
| Package Dimension | 1611*328*523mm | |||||
| Net Weight | <30kg | <35kg | ||||
| Gross Weight | 46kg | 51kg | ||||
| Operating temperature | -30℃～+50℃ | |||||
| Storage temperature | -40℃～+70℃ | |||||
| Relative humidity | 5℃～+95℃ | |||||
| Altitude | ≤2000m | |||||
| Installation method | Floor-standing | |||||
Description
Specification
Packing
Description
| Features | ||||||
| • 1. 5-inch touch screen, dual 7kW & dual 22kW output • Excellent human-machine interaction (HMI) system, displaying real-time voltage, current, power, etc. • 2. Support OCPP dual-platform connection • 3. Support intelligent charging schedule • 4. Remote upgrade & remote diagnosis • 5. Powerful expansion functions supporting home load balancing and PV (photovoltaic) integration • 6. Support Modbus RTU and Modbus TCP for connection to government monitoring equipment • 7. Ultra-strong protection: over-voltage protection, under-voltage protection, short-circuit protection, overload protection, earth fault protection, over-temperature protection • 8. High protection grade: IP54 • 9. Plug-out version & socket-out version | ||||||
| 14-42kw AC EV Charger | ||||||
| power | 14kw/42kw | |||||
| Number of rechargeable guns | Double gun | |||||
| Gun line length | 5m | |||||
| Display method | 5″ LCD touch screen | |||||
| Startup method | APP/RFID Card | |||||
| Networking method | 4G WIFI Bluetooth Ethernet | |||||
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） | |||||
| Input voltage | AC220V±20% | |||||
| Output current | 32A/63A | |||||
| Input frequency | 48Hz-65Hz | |||||
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. | |||||
| Extended function | DLB, PEN, AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development) | |||||
| Protection level | IP54 | |||||
| Product Dimension | 1400mm*350mm*160mm | |||||
| Package Dimension | 1611*328*523mm | |||||
| Net Weight | <30kg | <35kg | ||||
| Gross Weight | 46kg | 51kg | ||||
| Operating temperature | -30℃～+50℃ | |||||
| Storage temperature | -40℃～+70℃ | |||||
| Relative humidity | 5℃～+95℃ | |||||
| Altitude | ≤2000m | |||||
| Installation method | Floor-standing | |||||
Specification
Packing
