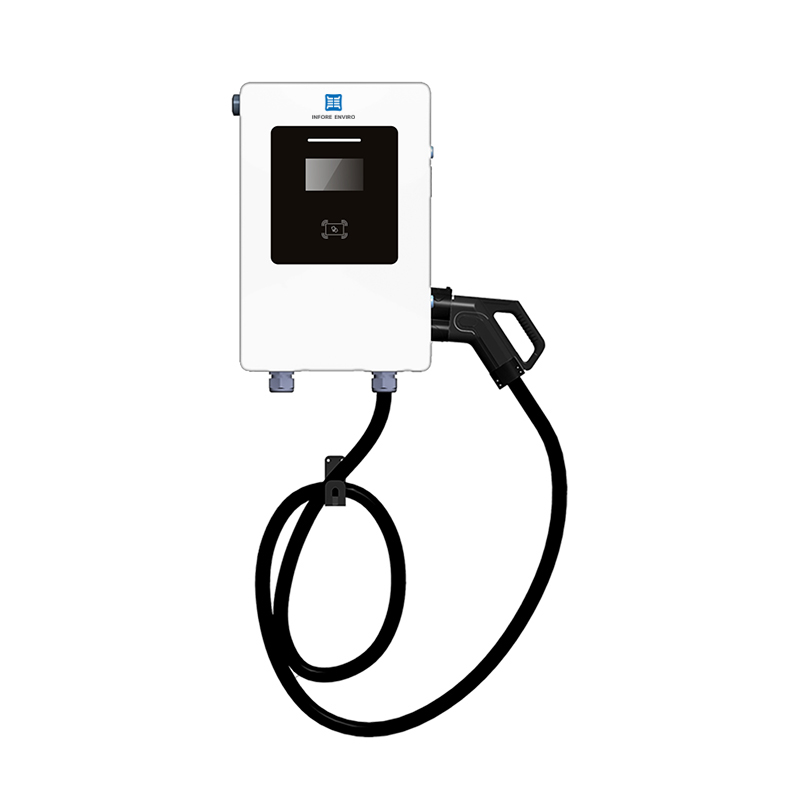

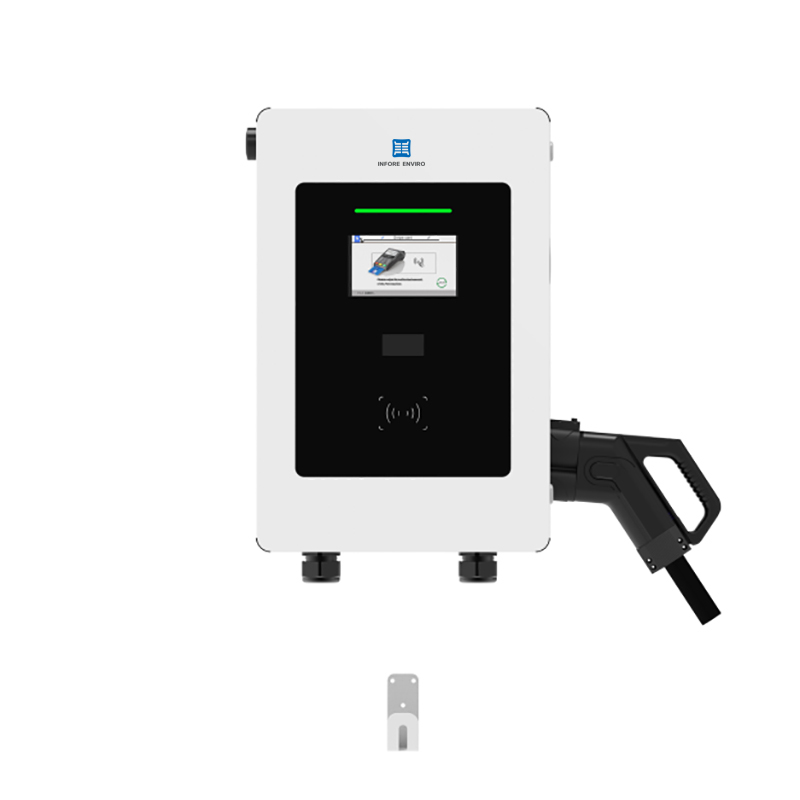

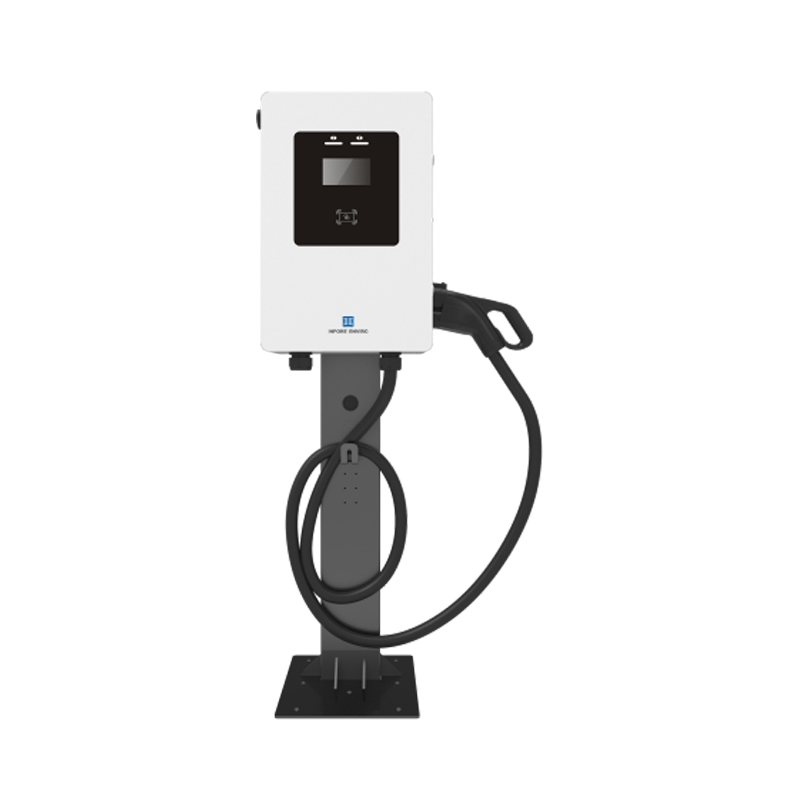

20kW/30kW/40kW DC EV Charger CCS2 Single gun

Commercial OCPP1.6J 20kW/30kW/40kW DC EV Charger CCS2 Single gun

Description

Features
Installation: Supports floor-standing and wall-mounted options. Charging Control: Enables scheduled charging, smart charging, and DLB (dynamic load balancing). Safety: Features overload, lightning, short-circuit, and leakage protection, plus emergency shutdown. Wide Application: Suitable for homes, offices, commercial complexes, parking lots, and public charging stations. Easy Maintenance: Supports remote upgrades and diagnostics. Fast Charging: DC charging provides faster charging than AC, reducing charging time. Smart Management: Real-time monitoring, scheduling, and remote control via mobile app. High Compatibility: Compatible with 99% of vehicle models.
20kW/30kW/40kW CCS2 DC EV Charger
power	20kW/30kW/40kW
Number of rechargeable guns	Single gun
Gun line length	5m
Display method	7″ LCD touch screen
Cooling method	Air-cooled
Startup method	APP/RFID Card/POS（optional）
Networking method	4G WIFI Bluetooth Ethernet
Network platform	WS/WSS OCPP1.6J（ocpp2.0 optional）
Input voltage	AC400V±10% (AC 208V-240V optional)
Output voltage	200-1000V
Input frequency	45Hz-65Hz
Protection function	Short circuit, overload, over temperature, leakage, overvoltage, etc.
Protection level	IP54
Operating temperature	-30℃～+50℃
Storage temperature	-40℃～+70℃
Relative humidity	5℃～+95℃
Altitude	≤2000m
Product Dimension	420230620mm
Package Dimension	420230620mm
Net Weight	45Kg	48kg
Gross Weight(External Package Carton	52kg	55kg
Installation method	Wall/Column
