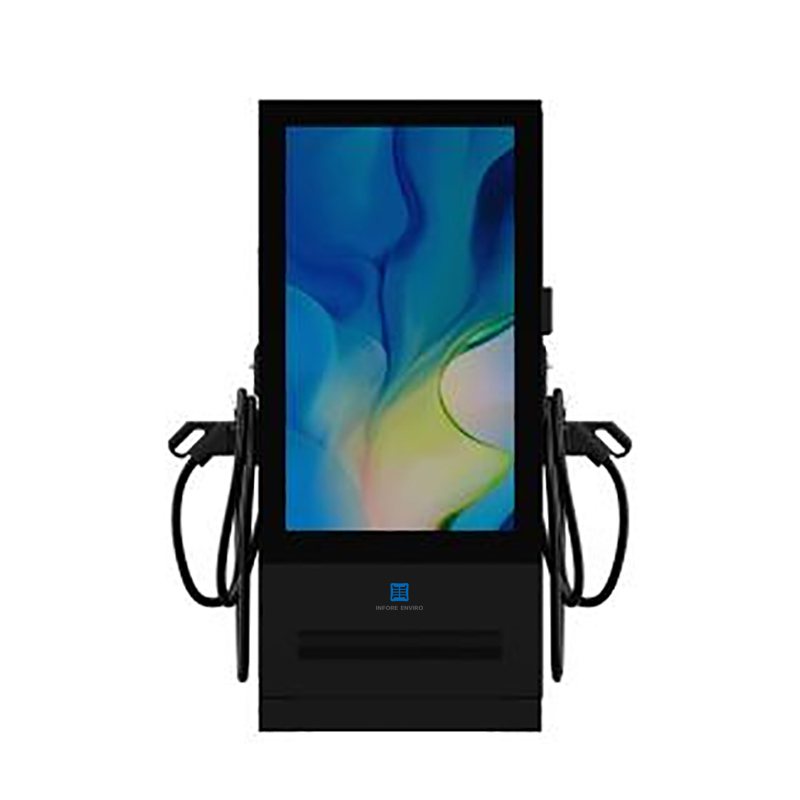

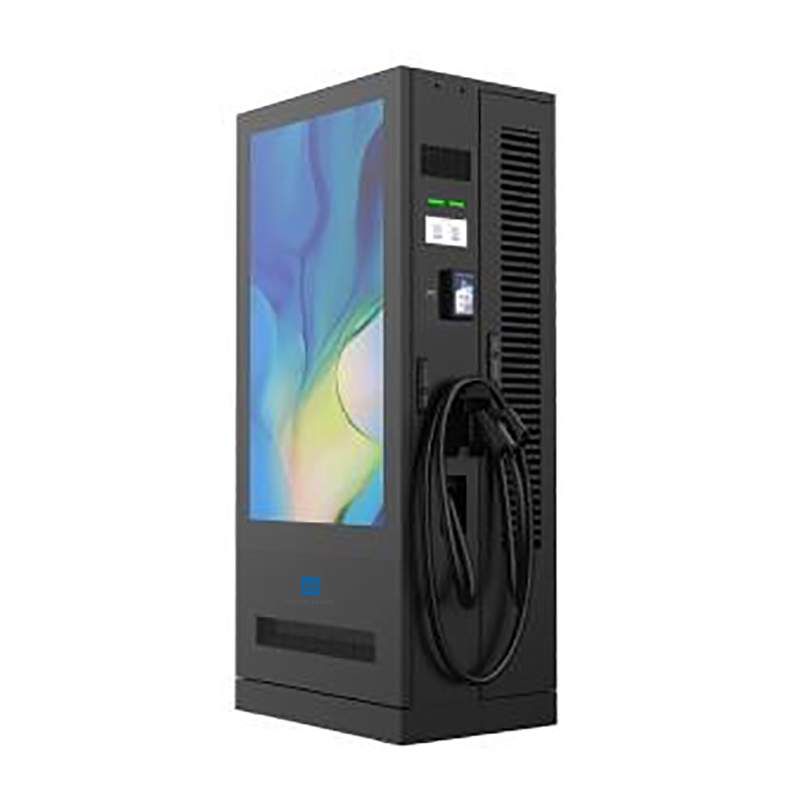

2 Guns DC EV Charging Advertising Station
Dedicated for best quality innovations
2 Guns DC EV Charging Advertising Station
2 Guns DC 120kW-180kW EV Charging Station Fast Charging
Highlights :
- 120-180kW
- 2 Guns CCS2
- Floor-standing
- 7″ LCD touch screen+55″advertising screen
- OCPP 1.6J
- IP54
Description
| Features | ||||||
• Floor-standing installation for easy setup. • Smart charging control: scheduled charging, intelligent planning, DLB home load balancing. • High safety: overload, lightning, short circuit, leakage protection, emergency stop. • Wide application: homes, offices, complexes, public stations. • Easy O&M: remote upgrade and diagnosis. • Fast charging: DC faster than AC, quick vehicle charging. • Smart management: real-time monitoring, timer setting, app remote control. • Strong compatibility: supports 99% of vehicle models. | ||||||
| 120-180kw DC EV Charger | ||||||
| power | 120kW-180kW | |||||
| Number of rechargeable guns | Double gun | |||||
| Gun line length | 5m | |||||
| Display method | 7″ LCD touch screen+55″advertising screen | |||||
| Cooling method | Air-cooled（Special noise reduction charging pile, low noise level） | |||||
| Startup method | APP/RFID Card/POS（optional） | |||||
| Networking method | 4G WIFI Bluetooth Ethernet | |||||
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） | |||||
| Input voltage | AC400V±10% | |||||
| Output voltage | 200-1000V | |||||
| Output current | 0-250A | |||||
| Input frequency | 45Hz-65Hz | |||||
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. | |||||
| Protection level | IP54 | |||||
| Operating temperature | -20℃～+50℃ | |||||
| Storage temperature | -40℃～+70℃ | |||||
| Relative humidity | 5℃～+95℃ | |||||
| Altitude | ≤2000m | |||||
| Dimensions | 2077*850*597 mm | |||||
| Package Dimension | 2220*1200*800mm | |||||
| Net Weight | 300kg | 350kg | ||||
| Gross Weight(External Pkg Wooden) | 360kg | 420kg | ||||
| Installation method | Floor-standing | |||||
Description
Specification
Packing
Description
| Features | ||||||
• Floor-standing installation for easy setup. • Smart charging control: scheduled charging, intelligent planning, DLB home load balancing. • High safety: overload, lightning, short circuit, leakage protection, emergency stop. • Wide application: homes, offices, complexes, public stations. • Easy O&M: remote upgrade and diagnosis. • Fast charging: DC faster than AC, quick vehicle charging. • Smart management: real-time monitoring, timer setting, app remote control. • Strong compatibility: supports 99% of vehicle models. | ||||||
| 120-180kw DC EV Charger | ||||||
| power | 120kW-180kW | |||||
| Number of rechargeable guns | Double gun | |||||
| Gun line length | 5m | |||||
| Display method | 7″ LCD touch screen+55″advertising screen | |||||
| Cooling method | Air-cooled（Special noise reduction charging pile, low noise level） | |||||
| Startup method | APP/RFID Card/POS（optional） | |||||
| Networking method | 4G WIFI Bluetooth Ethernet | |||||
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） | |||||
| Input voltage | AC400V±10% | |||||
| Output voltage | 200-1000V | |||||
| Output current | 0-250A | |||||
| Input frequency | 45Hz-65Hz | |||||
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. | |||||
| Protection level | IP54 | |||||
| Operating temperature | -20℃～+50℃ | |||||
| Storage temperature | -40℃～+70℃ | |||||
| Relative humidity | 5℃～+95℃ | |||||
| Altitude | ≤2000m | |||||
| Dimensions | 2077*850*597 mm | |||||
| Package Dimension | 2220*1200*800mm | |||||
| Net Weight | 300kg | 350kg | ||||
| Gross Weight(External Pkg Wooden) | 360kg | 420kg | ||||
| Installation method | Floor-standing | |||||
